Mercury™Angiographic Catheter

Mercury™ Angiographic Catheter | Hainwise: Precision Engineered for Vascular Navigation

1.Superior Radiopacity for Clear Visualization：The Mercury™ Catheter is engineered with exceptional radiopacity, providing a sharp, high-contrast image under fluoroscopy. This ensures precise visual guidance and confident navigation throughout complex vascular interventions, aiding in accurate device placement.

2.Advanced Hydrophilic Coating for Smooth Performance：Featuring a proprietary hydrophilic and low-friction coating along its entire length, the catheter ensures exceptionally smooth trackability and advancement through tortuous vasculature. This technology minimizes vessel drag, reduces procedural friction, and facilitates easier device delivery.

3.Optimized Tip Design for Safety and Control：The catheter tip is meticulously designed to be flexible and atraumatic, enhancing patient safety by reducing the risk of vessel dissection or spasm. This controlled flexibility allows for selective catheterization while maintaining stability and support during the procedure.

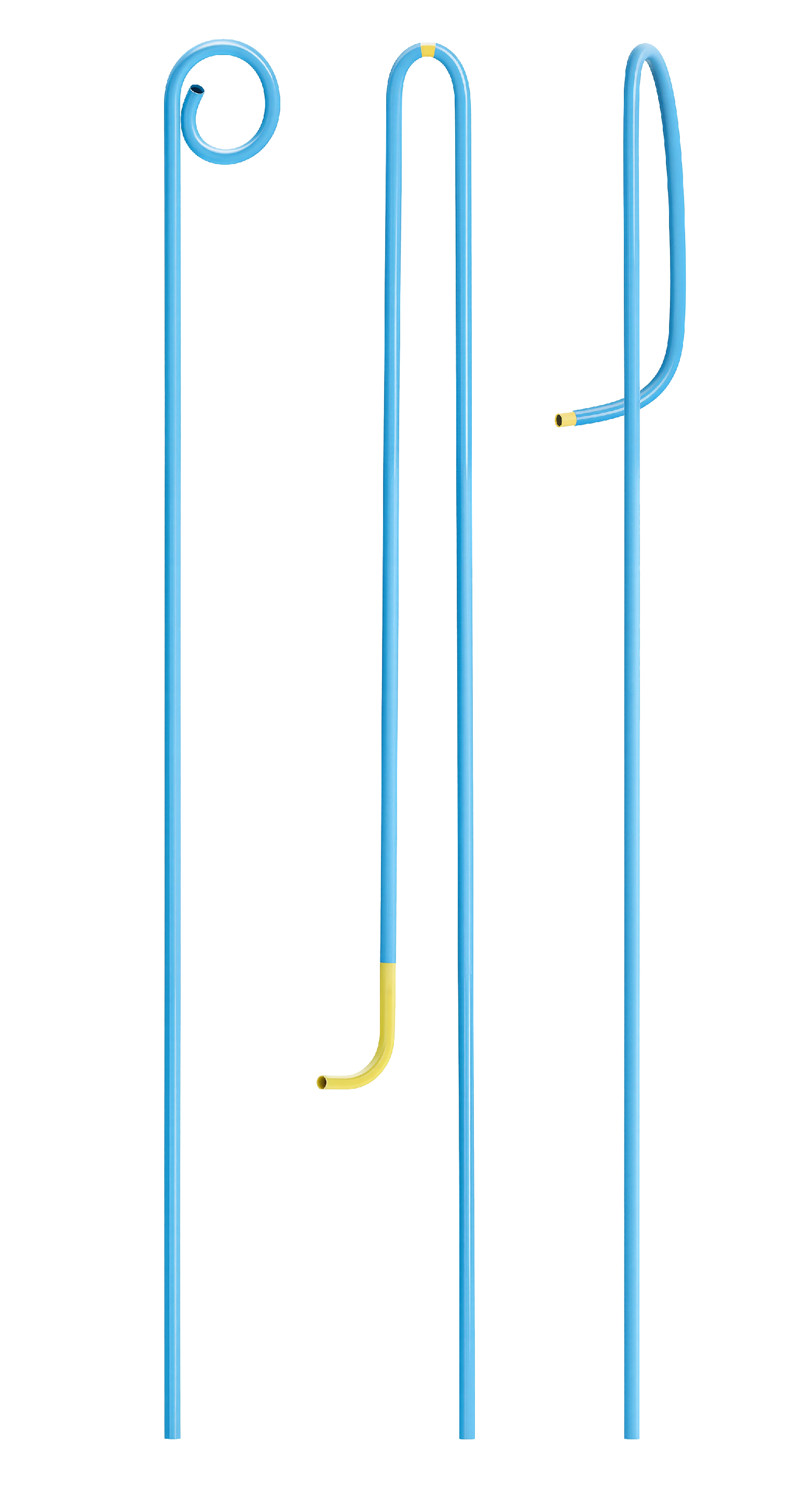

4.Comprehensive Procedural Compatibility：Available in a wide-ranging size matrix, including various lengths, diameters (French sizes), and tip configurations (such as Judkins, Multipurpose, or Cobra shapes). This comprehensive selection is designed to meet diverse clinical requirements and patient anatomies for coronary, peripheral, and neurovascular applications.

Clinical Benefits

1. Enhances Procedural Efficiency and Accuracy：The combination of excellent visibility and smooth trackability streamlines catheter navigation, potentially reducing procedure time. The clear fluoroscopic image aids in first-pass success and accurate target vessel selection, improving overall procedural precision.

2. Supports Patient Safety and Comfort：The atraumatic, flexible tip is designed to navigate vessels gently, minimizing trauma to the vascular endothelium. This patient-centric design helps reduce the risk of procedure-related complications, contributing to improved patient outcomes.

3. Offers Versatility for Diverse Interventions：With its comprehensive size and shape matrix, the Mercury™ Catheter is a versatile tool suitable for a wide spectrum of diagnostic and interventional angiographic procedures. It provides clinicians with the right tool for various anatomical challenges and clinical scenarios, from simple diagnostics to complex interventions.

Intended Use & Applications

The Mercury™ Angiographic Catheter is intended for use in the angiography of the vascular system.

Diagnostic angiography to visualize blood vessels in the coronary, cerebral, renal, and peripheral vasculature.
Delivery of contrast media for clear imaging.
As a support catheter for guiding interventional devices in selected procedures.

Its design supports reliable performance in navigating vascular pathways, aiding in effective diagnosis and treatment planning.

Model	OD(Fr)	ID(mm)	Length(cm)	Terminal configuration
RH630-4-80	4	1.0	80	Hepatic artery tube(RH)
RH630-5-80	5	1.03	80	Hepatic artery tube(RH)
SM510-4-100	4	1.0	100	Simmonsyube(SM)
SM510-5-100	5	1.03	100	Simmonsyube(SM)
SM511-4-100	4	1.0	100	Simmonsyube(SM)
SM511-5-100	5	1.03	100	Simmonsyube(SM)
SM512-4-100	4	1.0	100	Simmonsyube(SM)
SM512-5-100	5	1.03	100	Simmonsyube(SM)
HH371-4-100	4	1.0	100	Hunter head tube(HH)
HH371-5-100	5	1.03	100	Hunter head tube(HH)
HS640-4-80	4	1.0	80	Renalartery tube(HS)
HS640-5-80	5	1.03	80	Renalartery tube(HS)
HS641-4-80	4	1.0	80	Renalartery tube(HS)
HS641-5-80	5	1.03	80	Renalartery tube(HS)
CB230-4-80	4	1.0	80	Cobratube(CB)
CB230-5-80	5	1.03	80	Cobratube(CB)
CB231-4-80	4	1.0	80	Cobratube(CB)
CB231-5-80	5	1.03	80	Cobratube(CB)
CB232-4-80	4	1.0	80	Cobratube(CB)
CB232-5-80	5	1.03	80	Cobratube(CB)
RC620-4-80	4	1.0	80	Single bend tube(RC)
RC620-5-80	5	1.03	80	Single bendtube(RC)
RC621-4-80	4	1.0	80	Single bendtube(RC)
RC621-5-80	5	1.03	80	Single bend tube(RC)

Model	OD(Fr)	ID(mm)	Length (cm)	Terminal configuration
RC622-4-80	4	1.0	80	Single bend tube(RC)
RC622-5-80	5	1.03	80	Single bend tube(RC)
MPA281-5-100	5	1.03	100	Multifunctionaltube(MPA)
MPA35-5-110	5	1.03	100	Multifunctionaltube(MPA)
MPA280-4-100	4	1.0	100	Multifunctionaltube(MPA)
MPA280-5-100	5	1.03	100	Multifunctionaltube(MPA)
MPA281-4-100	4	1.0	100	Multifunctionaltube(MPA)
AN-4-100	4	1.0	100	Vertebralarterytube(AN)
AN-5-100	5	1.03	100	Vertebralarterytube(AN)
SH210-4-80	4	1.0	80	Shepherd tube(SH)
SH210-5-80	5	1.03	80	Shepherd tube(SH)
SH211-4-80	4	1.0	80	Shepherd tube(SH)
SH211-5-80	5	1.03	80	Shepherd tube(SH)
SH212-4-80	4	1.0	80	Shepherd tube(SH)
SH212-5-80	5	1.03	80	Shepherd tube(SH)
RS631-4-80	4	1.0	80	Slenic artery tube(RS)
RS631-5-80	5	1.03	80	Slenic artery tube(RS)
