Product Features
● Super strong core wire: Ideal torque response and maneuverability.
● A nitinol alloy core for optimal performance and kink resistance.
● Hydrophilic coating design: Extremely low coefficient of friction, long-lasting lubrication, excellent biocompatibility.
● Polyurethane containing tungsten cladding: Tungsten-infused polyurethane jacket provides superior tip and wire radiopacity
● End Configuration: accurately meet clinical needs.

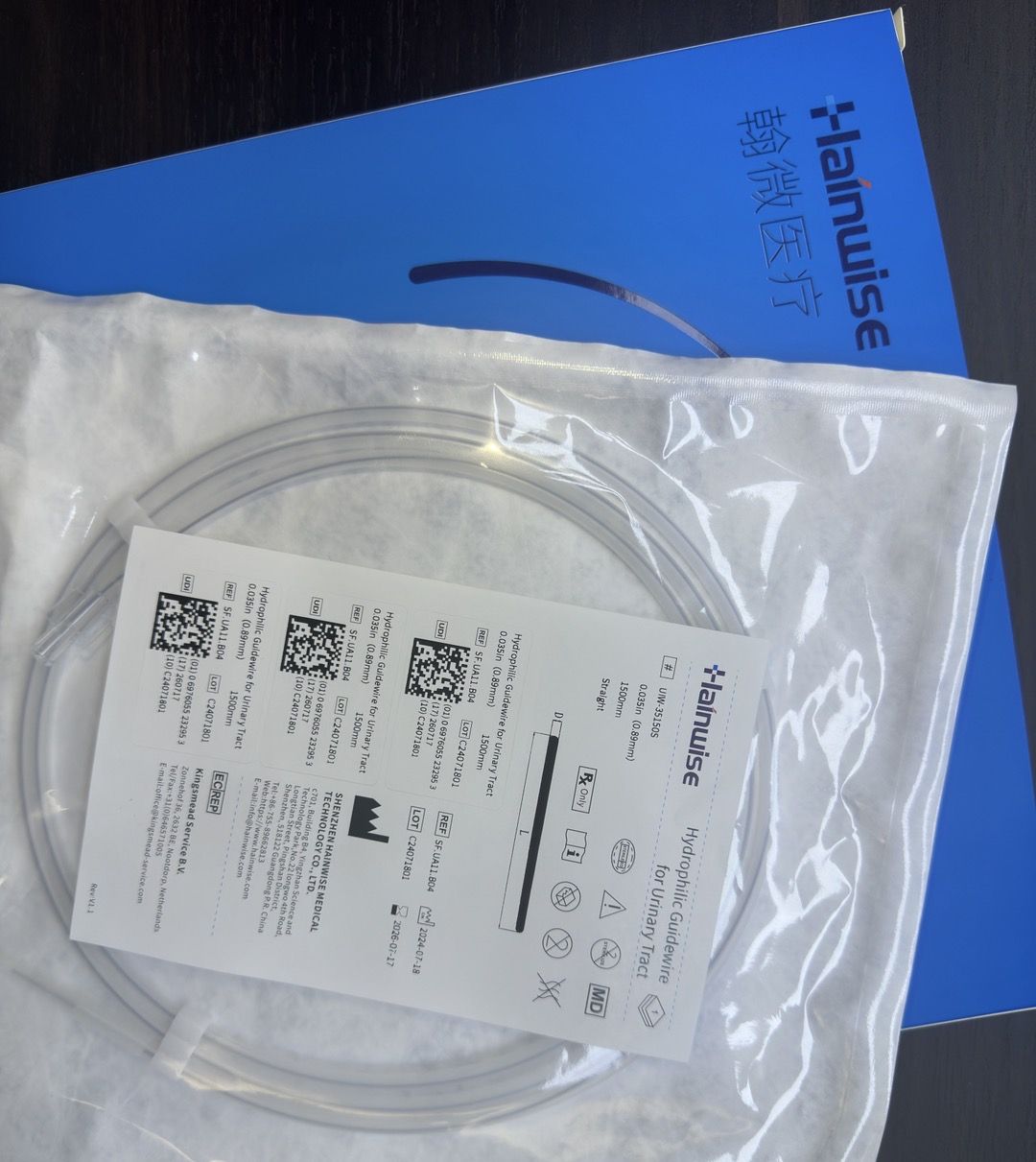

HW™ Hydrophilic Guidewire for Urinary Tract
Intended Use
Guidewires can be used for transurethral and/or percutaneous access to the bladder, ureter or renal pelvis. Hainwise Urology guidewires are crafted from high quality materials to ensure optimum performance and patient safety.
The core structure is made of a high-strength nickel-titanium alloy that provides excellent flexibility and durability for precise navigation through the urinary tract. The surface of this core is coated with a hydrophilic layer to ensure smooth passage through the urethra and urinary system.
Hainwise Urology Guidewires features a hydrophilic coating designed to navigate ureteral strictures and facilitate tracking of urological instruments and is available in a variety of sizes.
Nitinol core and polyurethane housing design provides excellent rotational torque for maximum control.
The Urological Zebra Guide Wire is a specialised medical device designed to assist healthcare professionals in navigating the urinary tract during diagnostic and therapeutic procedures. It offers excellent flexibility, visibility and manoeuvrability, making it an indispensable tool for urologists, interventional radiologists and other clinicians performing urological interventions.
The HW™ Urologic Hydrophilic Coated Guidewire is intended for gaining ureteral access, to establish a tract, and to assist in the placement, replacement, and exchange of medical devices during urological procedures.
Structure Composition
HW™ Hydrophilic urology guidewire is composed of a nitinol alloy core wire, a polyurethane containing tungsten cladding and a hydrophilic coating.
Specification
Model | Outer Diameter | Effective Length | End Configuration |
UIW-18080S | 0.018inch | 800mm | Straight type |
UIW-18150S | 0.018inch | 1500mm | Straight type |
UIW-18080A | 0.018inch | 800mm | Angled type |
UIW-18150A | 0.018inch | 1500mm | Angled type |
UIW-25080S | 0.025inch | 800mm | Straight type |
UIW-25150S | 0.025inch | 1500mm | Straight type |
UIW-25080A | 0.025inch | 800mm | Angled type |
UIW-25150A | 0.025inch | 1500mm | Angled type |
UIW-28080S | 0.028inch | 800mm | Straight type |
UIW-28150S | 0.028inch | 1500mm | Straight type |
UIW-28080A | 0.028inch | 800mm | Angled type |
UIW-28150A | 0.028inch | 1500mm | Angled type |
UIW-32080S | 0.032inch | 800mm | Straight type |
UIW-32150S | 0.032inch | 1500mm | Straight type |
UIW-32080A | 0.032inch | 800mm | Angled type |
UIW-32150A | 0.032inch | 1500mm | Angled type |
UIW-35080S | 0.035inch | 800mm | Straight type |
UIW-35150S | 0.035inch | 1500mm | Straight type |
UIW-35080A | 0.035inch | 800mm | Angled type |
UIW-35150A | 0.035inch | 1500mm | Angled type |
UIW-38080S | 0.038inch | 800mm | Straight type |
UIW-38150S | 0.038inch | 1500mm | Straight type |
UIW-38080A | 0.038inch | 800mm | Angled type |
UIW-38150A | 0.038inch | 1500mm | Angled type |
Product Support
Hainwise guidewires are engineered to ensure rapid entry, easy advancement, smooth tracking, and maximum maneuverability. They help maintain precise control at every step of the procedure. Hainwise guidewires are available in a variety of materials, additional cores, connectors, and sizes to ensure the right combination of pattern, resistance, and visibility for optimal results.
