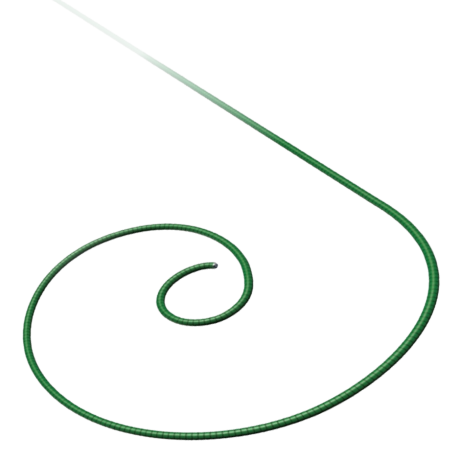

● High shaft stiffness with pre-formed atraumatic tip supports vessel straightening and reduces the risk of ventricular perforation

● Integrated conductive core for over-the-wire pacing enables temporary right ventricular pacing without a separate pacing lead

● Sensor-integrated hemodynamic monitoring (optional) provides real-time LV–aortic pressure tracing during valve deployment

● Hydrophilic distal coating enhances trackability while minimizing vascular trauma

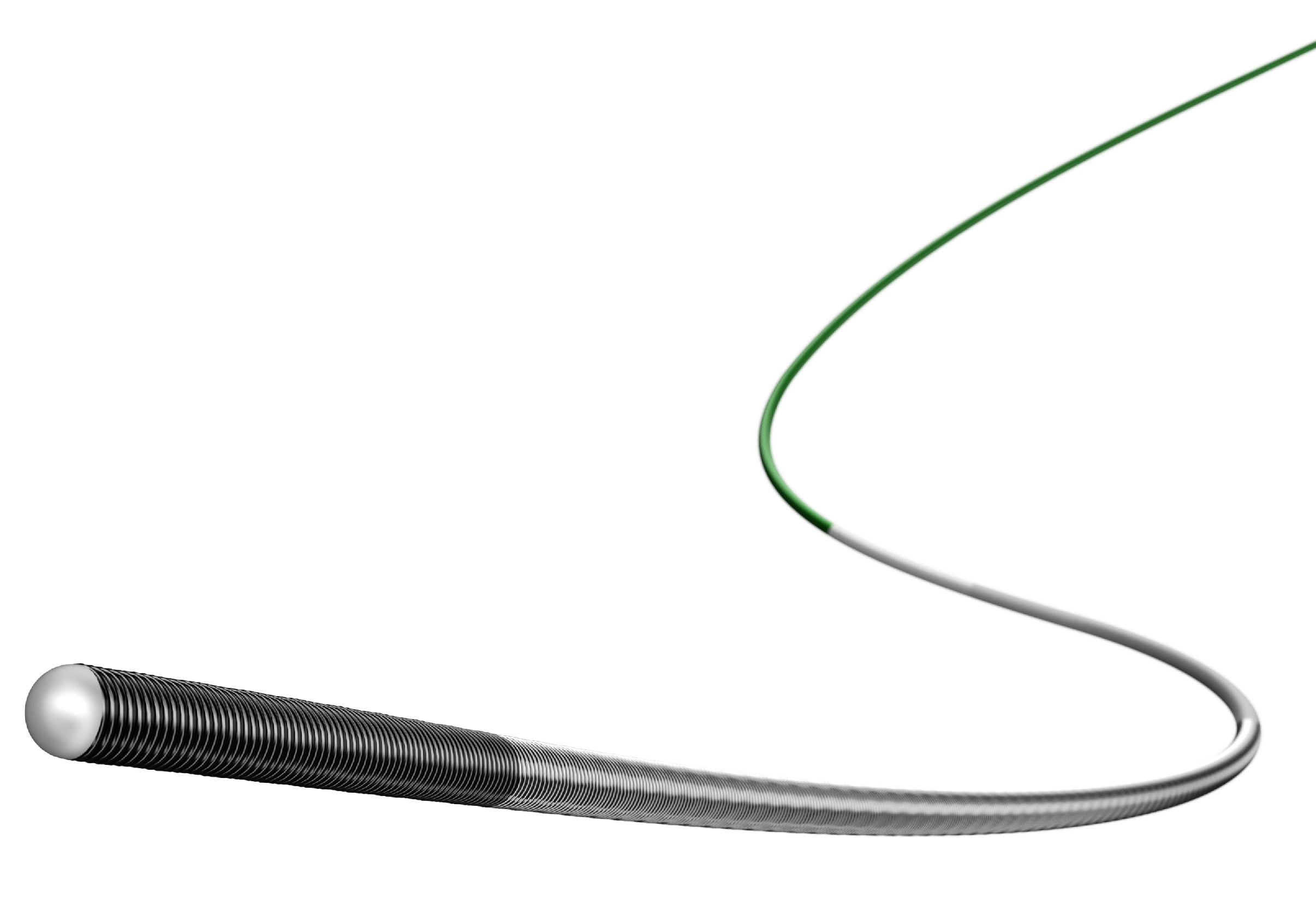

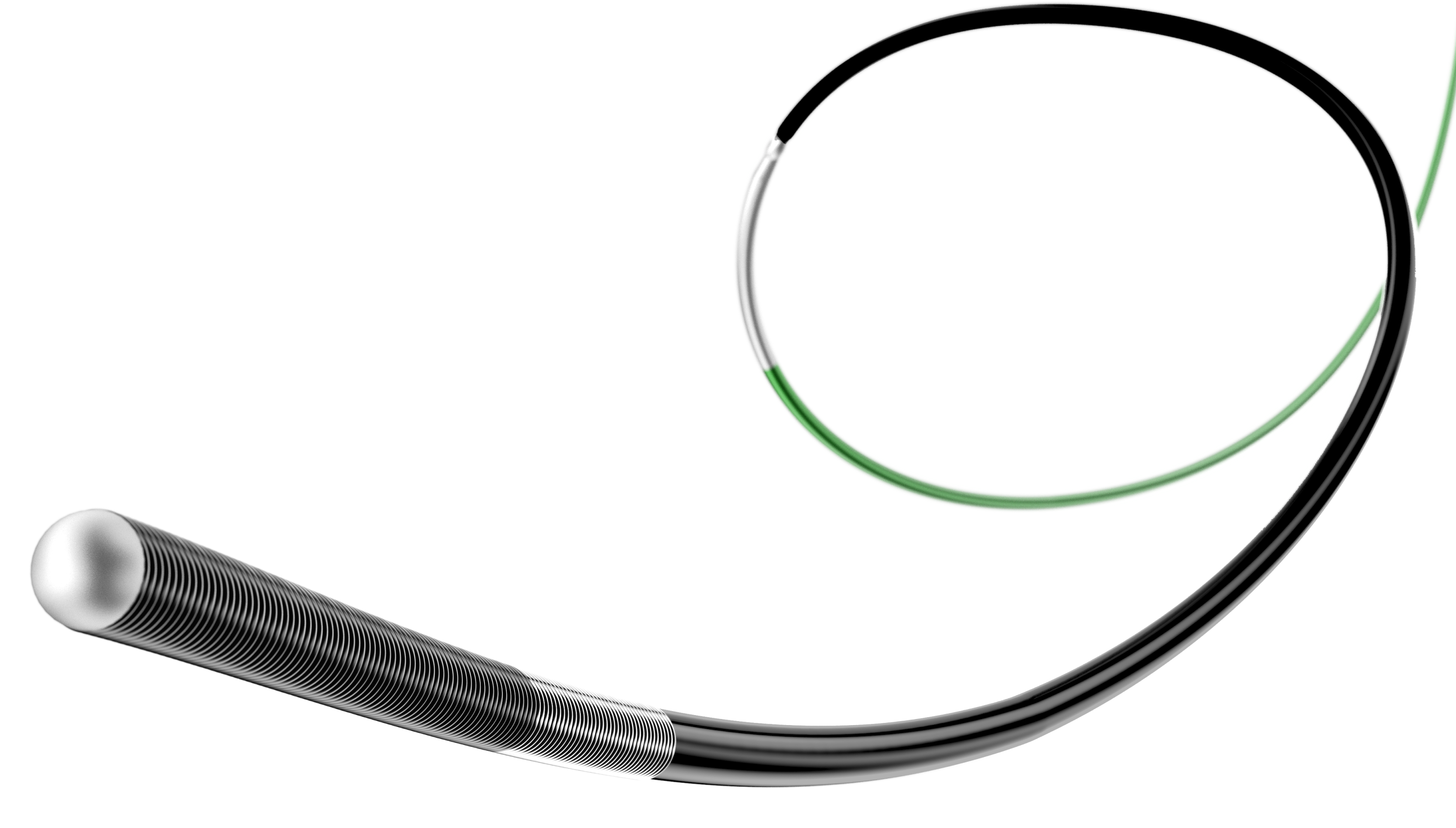

● Variable stiffness core for balanced flexibility and support

● Platinum radiopaque tip for precise fluoroscopic visualization

● Atraumatic silicone-coated distal segment for safe vessel navigation

● 1:1 torque response for accurate directional control

● Hydrophilic distal coating for smooth lesion crossing

● Multi-component structural architecture integrates a platinum distal coil, multi-tapered stainless steel core, and proximal hypotube for balanced flexibility and support

● Flexible radiopaque platinum tip enhances visualization and supports atraumatic navigation in delicate neurovascular anatomy

● 1:1 torque-responsive core design provides controlled advancement with reliable proximal support

● Hydrophilic distal coating reduces friction to facilitate smooth trackability through tortuous vessels

● Color-coded proximal handle supports intuitive device identification and clinical operation

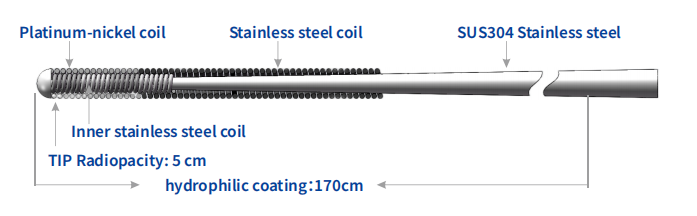

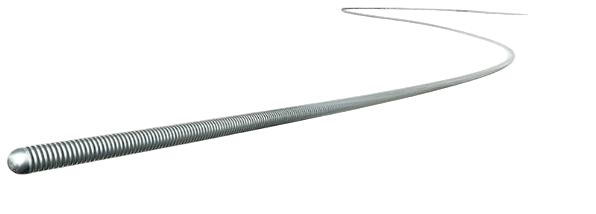

● Multi-layer platinum coil architecture for enhanced radiopacity and structural integrity

● Extended 5 cm radiopaque distal segment for continuous fluoroscopic visualization

● 170 cm hydrophilic coating for ultra-low friction and smooth superselective navigation

● 1:1 torque transmission up to 270° rotation for precise directional control

● Ultra-low 0.012" distal profile for distal and superselective vessel access

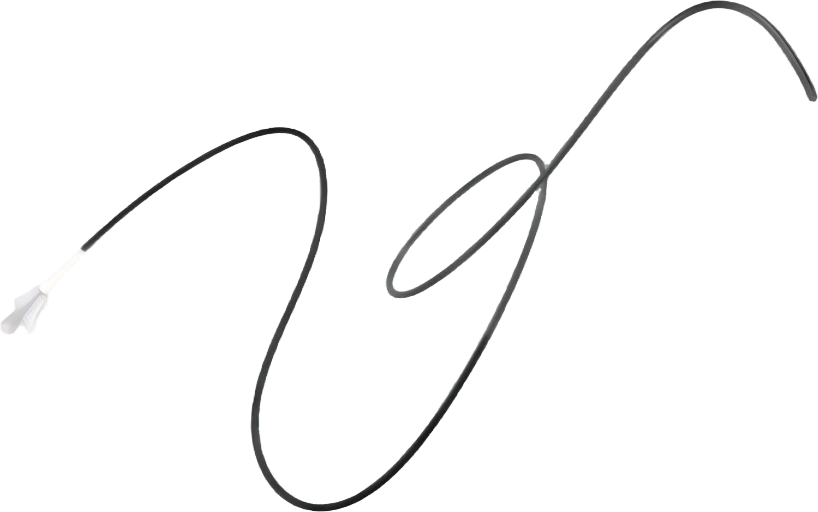

● Ultra-flexible distal segment for safe navigation in distal cerebral and microvascular anatomy

● Steam-shapeable tip with shape retention for customized vessel access and stable positioning

● Full-length hydrophilic coating ensures smooth advancement through tortuous pathways

● Low-friction PTFE inner liner enhances guidewire compatibility (0.010″–0.017″) and device delivery performance

● Tri-zone radiopaque markers provide clear fluoroscopic localization and working-length reference

● Optimized 1.7 Fr distal lumen supports reliable delivery of coils, particles, and liquid embolic agents

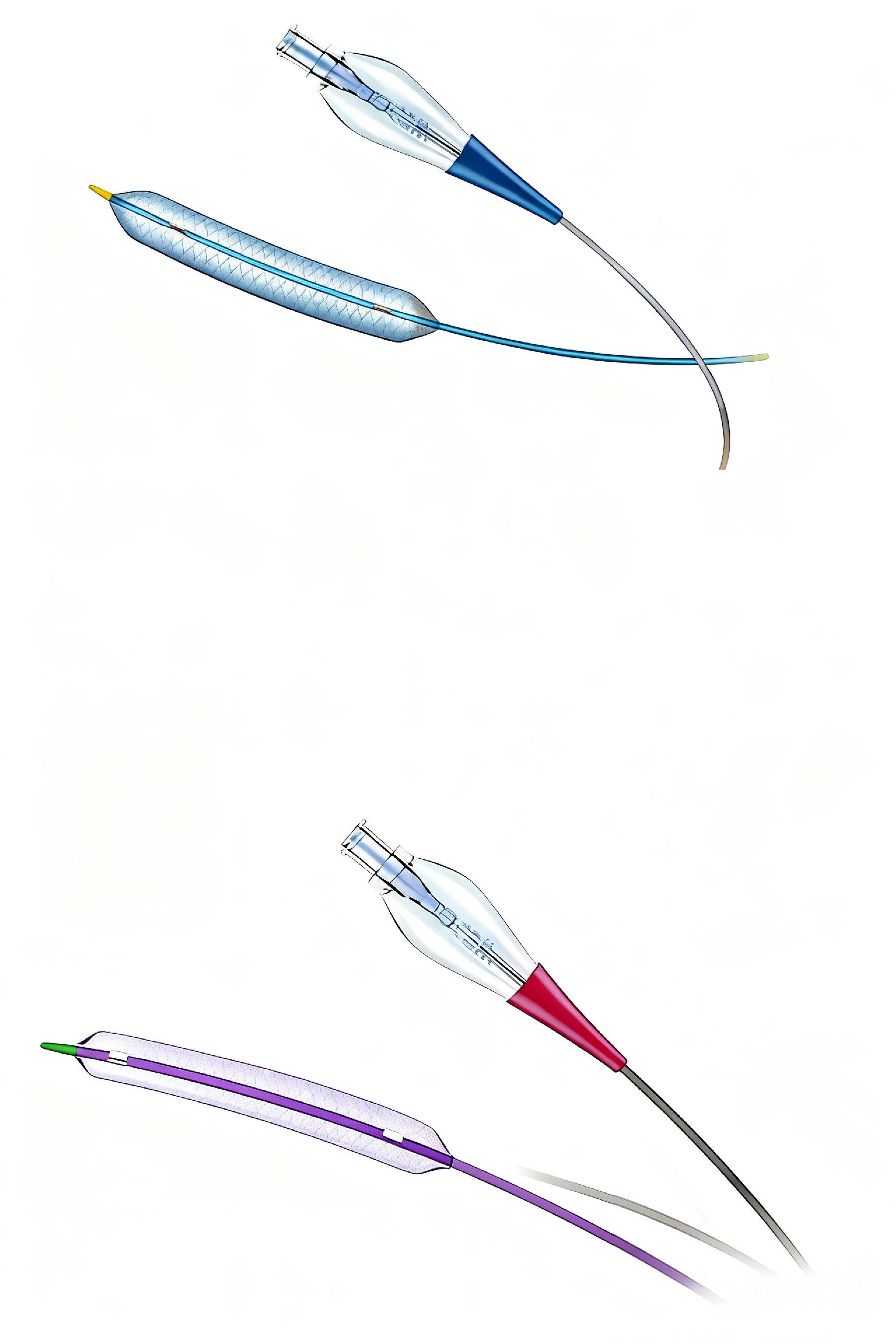

● Ultra-low tip entry profile for improved lesion crossing

● Flexible multi-layer shaft for balanced pushability and trackability

● Semi-compliant balloon material for predictable expansion at rated burst pressure

● Optimized balloon geometry for controlled focal dilation

● Rapid deflation design to reduce occlusion time

● Dual-scale graduated barrel for precise volume control

● Standard ISO Luer-Lock connector for secure, leak-resistant connection

● Ergonomic flanged plunger for smooth and controlled injection

● Transparent barrel for clear visualization of contrast media

● Available in multiple capacities to meet procedural requirements

● Integrated real-time pressure monitoring for precise balloon control

● Fine-thread screw mechanism for smooth inflation and controlled deflation

● Clear pressure display in atm or psi for direct visual feedback

● Ergonomic handle design for stable operation and reduced hand fatigue

● Standard Luer-Lock connection for secure attachment to compatible devices

● Defined pressure rating for reliable high-pressure transmission

● Flexible shaft design for improved routing and handling

● Locking connectors on both ends for secure, leak-resistant attachment

● Available in multiple lengths to accommodate different procedural setups
